Drying performance

Test procedure:

A relative humidity of 100 % is simulated in a desiccator for gas-filling. A SICCO Gas Dosing Controller is connected during the lead in of nitrogen in order to control the gas supply and monitor the relative humidity. The attainable required humidity is adjusted to 10 %, the flow rate to 8 Liters / minute and the pressure reducer on the nitrogen bottle to 0,5 bar. The door remains closed tightly until the end of the test. The curves show the relative humidity versus time.

Results:

The moist air inside the desiccator is displaced by nitrogen with low humidity and thus the required relative humidity is reached in a very short period of time.

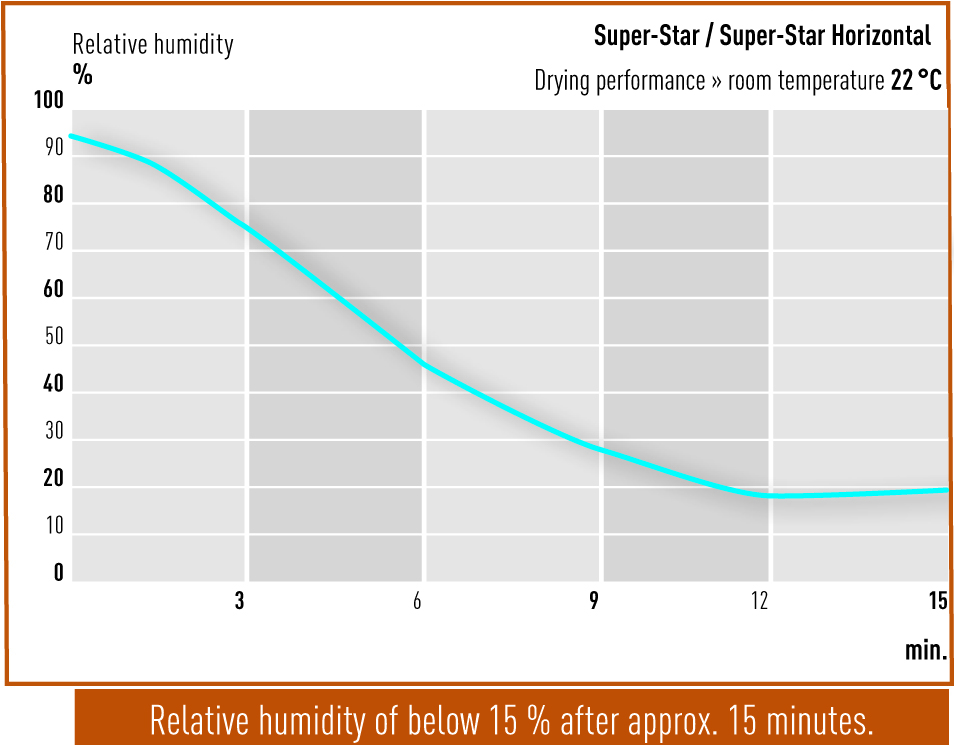

Drying Performance Super-Star / Super-Star Horizontal

Trockenleistung-Super-Star-Eng

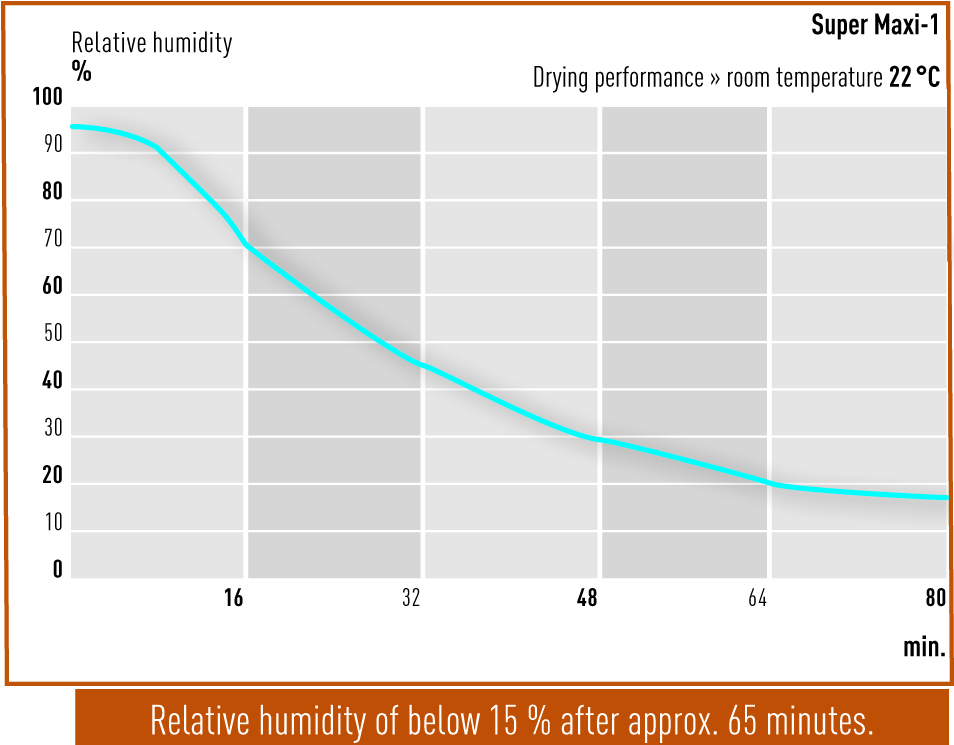

Drying Performance Super Maxi-1

Trockenleistung-Super-Maxi-1-Eng

Drying Performance Super Big-Star und Super Maxi-2

Trockenleistung-Super-Big-Star-und-Maxi-2-Eng
